AD5362BSTZ
Manufacturer:
Analog Devices
Mfr.Part #:
AD5362BSTZ
Datasheet:
Description:

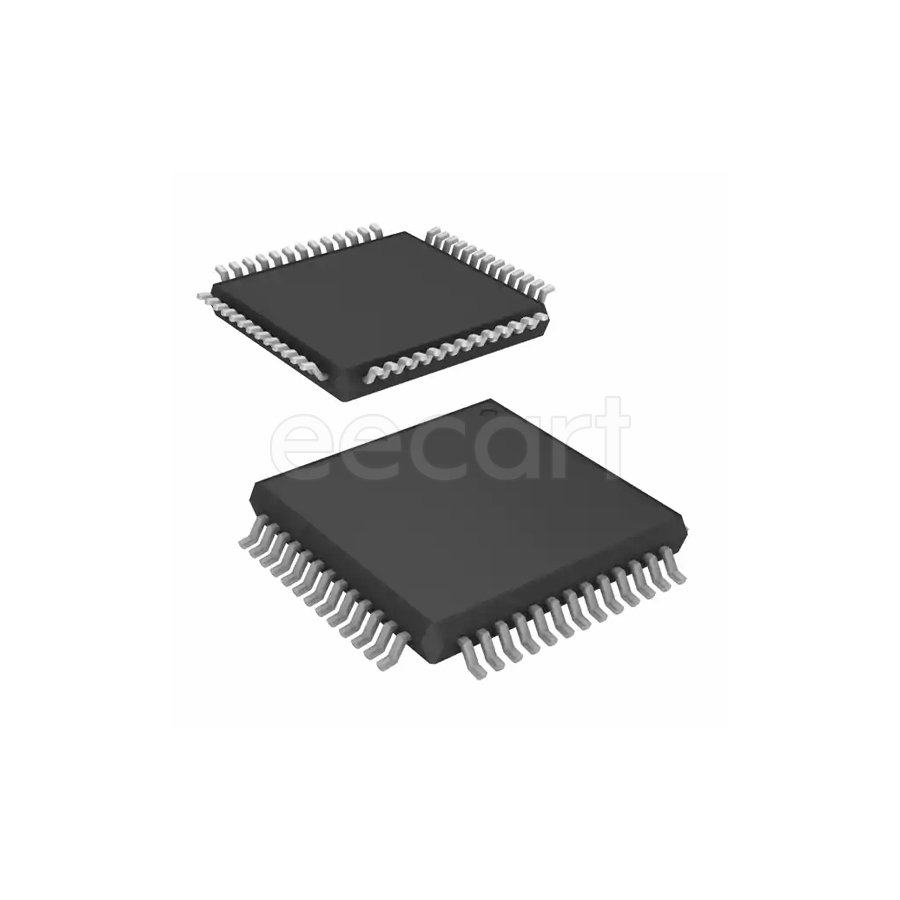

Digital to Analog Converters (DACs) LQFP-52 SMD/SMT number of channels:8 number of bits:16 Number of D/A Converters:8
| Parameter | Value |
|---|---|
| Length | 10 mm |
| Width | 10 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 52 |
| Height | 1.4 mm |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Interface | SPI, Serial |
| Min Input Voltage | 2 V |
| Output Type | Voltage |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Max Power Dissipation | 209 mW |
| Max Supply Voltage | 16.5 V |
| Min Supply Voltage | 8 V |
| Power Dissipation | 209 mW |
| Number of Channels | 8 |
| Slew Rate | 1 V/µs |
| Number of Bits | 16 |
| Number of DAC Channels | 8 |
| Max Input Voltage | 5 V |
| Number of Outputs | 8 |
| Sampling Rate | 540 ksps |
| Integral Nonlinearity (INL) | 4 LSB |
| Number of Converters | 8 |
| Settling Time | 20 µs |
| Dual Supply Voltage | 15 V |
| Nominal Supply Current | 8.5 mA |
| Min Output Voltage | 8 V |
| Resolution | 2 B |
| Max Output Voltage | 20 V |
| Max Dual Supply Voltage | 16.5 V |
| Number of D/A Converters | 8 |
| Differential Output | No |
| Schedule B | 8542390000 |
| Manufacturer Lifecycle Status | PRODUCTION (Last Updated: 2 weeks ago) |
| RoHS | Compliant |
| Packaging | Tray |
| Reference Type | External |
| Interface Type(Data Interface) | SPI, DSP |
| Analog Supply Voltage | 8 V to 16.5 V, -4.5 V to 16.5 V |
| Max Digital Supply Voltage | 5.5 V |
| Min Digital Supply Voltage | 2.5 V |
| Core Architecture(core/core processor) | String DAC |
Stock: 106
Distributors
pcbx
pcbxUnit Price$40.42001
Ext.Price$40.42001
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $40.42001 | $40.42001 |
| 10 | $37.42767 | $374.27670 |
| 25 | $34.65685 | $866.42125 |
| 50 | $32.09116 | $1604.55800 |
| 100 | $29.71561 | $2971.56100 |
